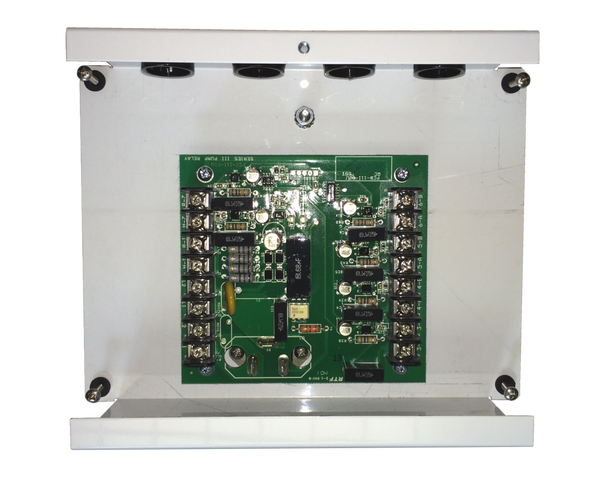

Pump Relay in Metal Box (6-Station)
Pump Relay in Metal Box (6-Station)

Pump Relay in Metal Box (6-Station)

Regular price $386.10
Part Number: ASY-111-X01
Vendor: Micro-Air, Inc. Shipping Weight: 20.0 oz
Shipping calculated at checkout.
Product Overview
The 6-station Pump Relay (PRP) boards for Cabin & Chiller Controls

The 6-station Pump Relay (PRP) boards allows control of a common seawater pump between multiple cabin or chiller controls. It can also be used to control a common chilled-water loop pump between multiple chiller controls.

Separate, fully-isolated pump trigger inputs accept either 115VAC/60Hz or 230VAC/50-60Hz. The pump power source and pump output is also isolated and can be either 115VAC or 230VAC/50-60Hz.

The metal enclosure allows for entry and exit of all wires to and from the controls, from the pump power source, and to the pump.
  • Fully isolated trigger inputs allow connection to different circuits.
  • Compatible with any manufacture pump and AC or chiller system.
  • Controls common sea water pump for multiple AC or chiller units.
  • Capacity to handle up to 20 amps.
  • 100 to 240 VAC capable at both 50 and 60Hz.
  • Trigger 230 pumps from 120 volt AC
  • Trigger 120 pumps from 230 volt AC
  • 2, 6, or 12 trigger inputs available.
Pump Relays Compatible with All Cabin & Chiller Controls, Including Legacy OEM
  • Replaces Legacy Cruisair Pump Relays
