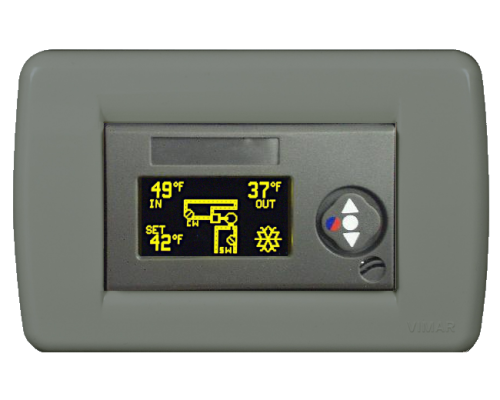

FX-2 Chiller OLED Joystick Control Display
FX-2 Chiller OLED Joystick Control Display

Weight : 10.0 oz

Part Number : ASY-378-X03 CHILL

Product type: Chiller Controls

Vendor: Micro-Air, Inc.

$0.00

Availability: Discontinued

Scroll Down to Read This Product's Customer Reviews, or Write One for Us!

The FX-2 Chiller OLED Joystick Control Display connects to the FX-2 Control Board (ASY-360) and allows for the control of a single-stage chiller system. The FX-2 Control Family was designed to support either DX/CW cabin control or chiller system control, all with a common control board. When operating as a chiller control, the FX-2 provides all of the required features for safe and simple operation.

The FX-2 Chiller OLED Joystick Control Display can be mounted in either the Vimar® Idea or Gewiss® Playbus frames. Hundreds of decorative bezels are available for either line.

Chiller Control Features:
  • Universal 115/230 VAC 50/60 Hz power supply
  • Directly drives compressor, loop water pump, and reversing valve AC outputs (and can also drive contactors)
  • Sea water pump output is pilot duty and drives a contactor or pump relay
  • High and low refrigerant pressure switch inputs
  • 8-pin RJ-45 Display Interface
  • Flow switch input
  • Supply and return water temperature sensor inputs
  • Control display allows for all programming and control
  • Supports FX-2 Control Board w/ EasyStart daughterboard option
