Hydromatic II Pump Board
Hydromatic II Pump Board

Hydromatic II Pump Board

Regular price $238.70
Part Number: ASY-251-X0C
Vendor: Micro-Air, Inc. Shipping Weight: 10.0 oz
Shipping calculated at checkout.
Product Overview
Hydromatic II Pump Board

The Hydromatic II is a new and advanced control system for multi-stage marine chillers. It employs the latest technology and CAN Bus networking capabilities, and offers many sensor monitoring and advance control features.

The Hydromatic II Pump Board is required to operate both the sea water and loop water pumps (one pump board per multi-stage system).
Before You Buy

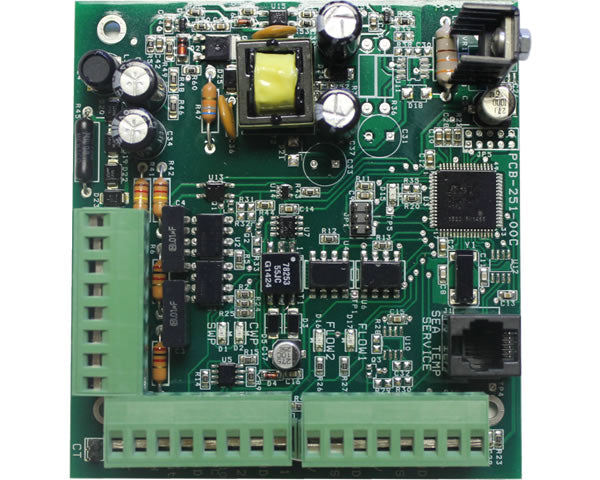

This is a replacement board for Hydromatic II controls used in some chilled water systems. Boards should look very similar to the one pictured including connectors and jumpers as the design has changed very little.
Features
  • Universal 115/230 VAC 50/60 Hz power supply
  • Directly drives AC contactors for sea water and loop water pumps
  • Auxiliary voltage input allows using contactors with coil voltages different from the main supply voltage
  • Loop Water pressure transducer inputs
  • Sea water temperature sensor
  • Separate common flow switch input
  • Simple CAN Bus two-wire connection between stage control boards and the pump control board
Specifications/Notes
None Available
