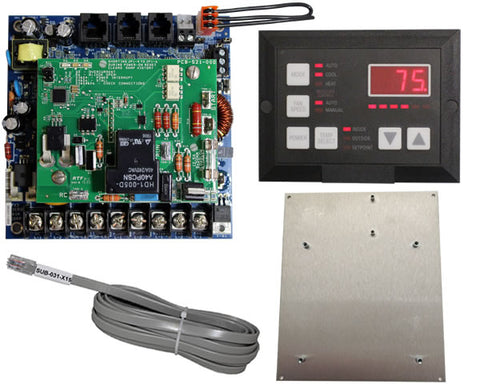

Unity Control Board
Unity Control Board

Unity Control Board

Regular price $278.00 $0.00
Part Number: 501-09-BL
Vendor: Micro-Air, Inc. Shipping Weight: 1.0 lb
Shipping calculated at checkout.
Product Overview
Unity Control Board
The Unity board is a next generation module that incorporates the features of the SMX II, Q-Logic and Passport IO control boards in a single control board. The Unity board is designed to replace these three control boards in all future Dometic products. One of the design goals for this module was that it be plug and play compatible with the legacy controls it replaces. Displays connected to this module should function and behave as though they were connected to the original legacy controller.

Temperature sensor selection is now standardized with the Unity module. All systems manufactured by Dometic from 1/1/2016 on are now equipped with Cruisair TSEP sensors. Marine Air Systems replacement applications can still use the old marine air sensors by cutting the RES SEL (JP5) jumper. All temperature sensors connected must be the same type sensor. Cruisair applications must only use Cruisair TSEP sensors.

Guides & Information
Compatibility
Unity has been tested and approved for use with the following displays:
  • Passport IO
  • Passport IO Compact
  • Passport Elite
  • SMX ir
  • SMX II-AB
  • SMX ht
  • Q3
  • Qht
  • Smart Touch
Features
Benefits/Notes
